The total elongation of the steel cord belt including permanent and elastic elongation is limited to 0 3.

Steel cord conveyor belt specification pdf. The covers which must have the required physical properties and chemical resistance to. Steel cores are however only used in the case of excess stress and multiple use in order to protect the belt edges and cover plates from excessive. The composition of a conveyor belt can be considered in two parts. Preparations 1 1 belt transport for transportation conveyer belts are usually wound onto wooden cores or in the case of higher loads steel cores.

Our expertise and experience has produced significant advancements in conveyor belt design including world records for the strongest belt both textile and steel cord the steepest overland and world s. They are especially suitable for high mass or high volume flows and for abrasive materials. Users can use x rays to inspect damages of steel cords on the conveyor to prevent accidents. 206 athinon ave 104 42 greece tel.

A requirement of din standards for steel cord conveyor belts is that the breaking force of a vulcanized steel cord in the conveyor belt shall be at least as great as the product of the minimum breaking strength of the conveyor belt by the cord spacing with an addition of approximately 10. Inspection of the belt with x rays. Features handbook grades specifications. The take up length is calculated as t 0 3 of c c distance of conveyor it is however advisable to keep some extra length in the take up for any additional splice required.

Belt e or belt mm. 00 30 210 515 1632 fax. Other carcass constructions and belt strengths are available upon request. Steel cord conveyor belts are highly wear resistant and used principally for long haul conveying heavy loads and physically demanding applications.

To determine the approximate belt weight per square meter simply multiply the sum of the covers by 1 15 and add the result to the carcass weight. Instructions for splicing steel cord belts 7 1. Steel cord conveyor belts technical information phoenix conveyor belt systems gmbh phoenix conveyor belt systems gmbh has produced conveyor belt design which include world records such as the strongest belts both textile and steel cord the steepest overland and the world s heaviest belt. Thickness of the belt to calculate the thickness of the belt please add the total thickness of the covers to the cord diameter.

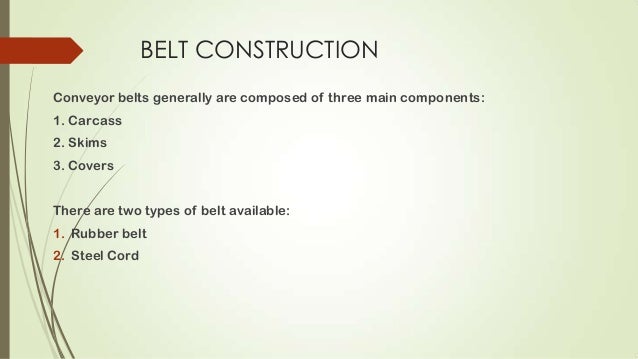

The carcass whether ply type textile or steel cord construction which must have sufficient strength to handle the operating tensions and to support the load.
